DS18 NXL 1-Channel Class D IP67 Marine and Powersports Amplifier 1 x 1000 Watts Rms @ 1-Ohm

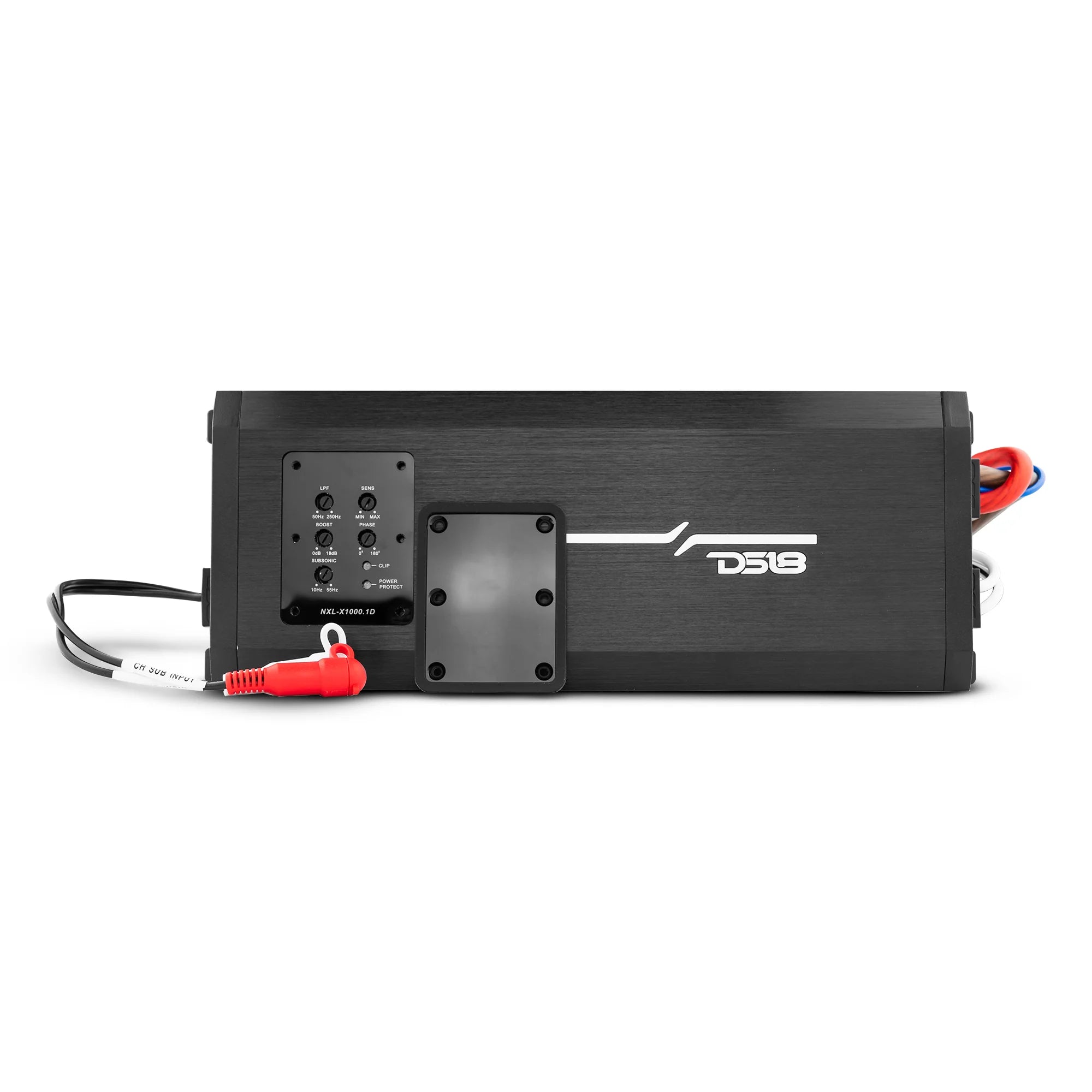

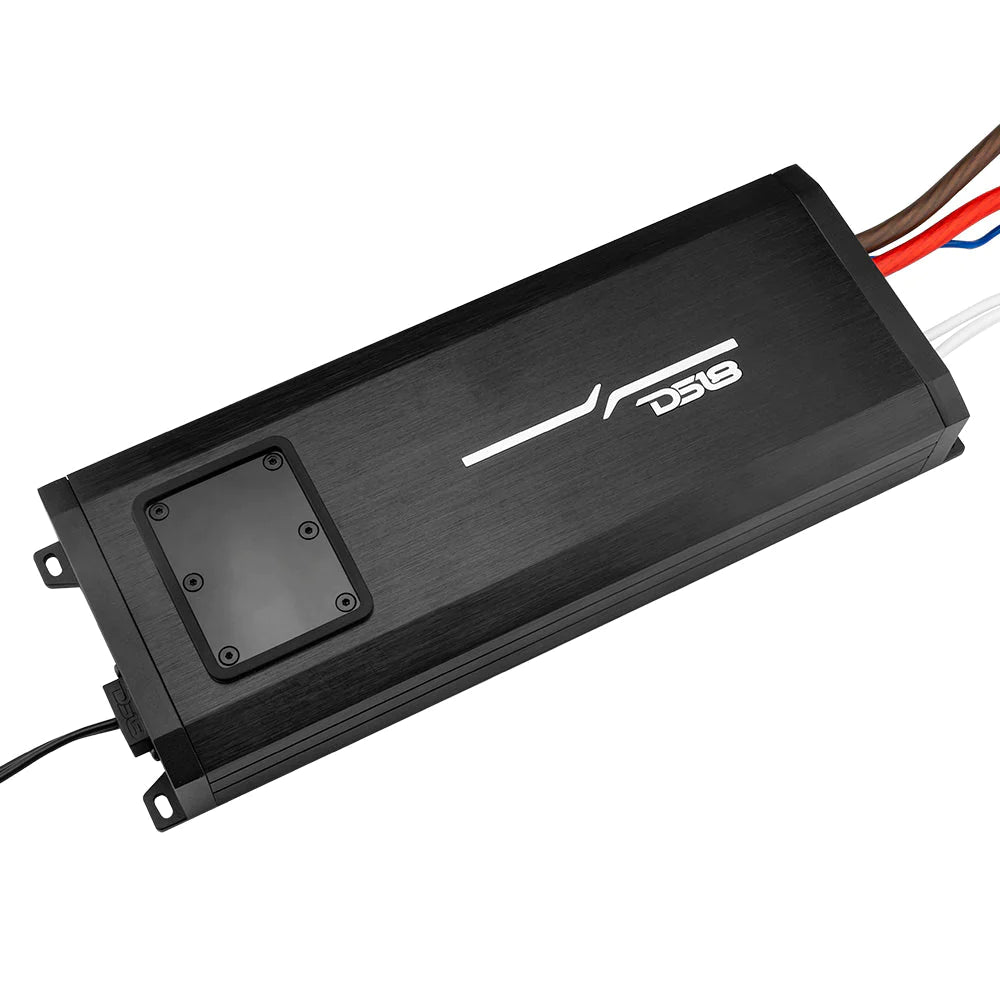

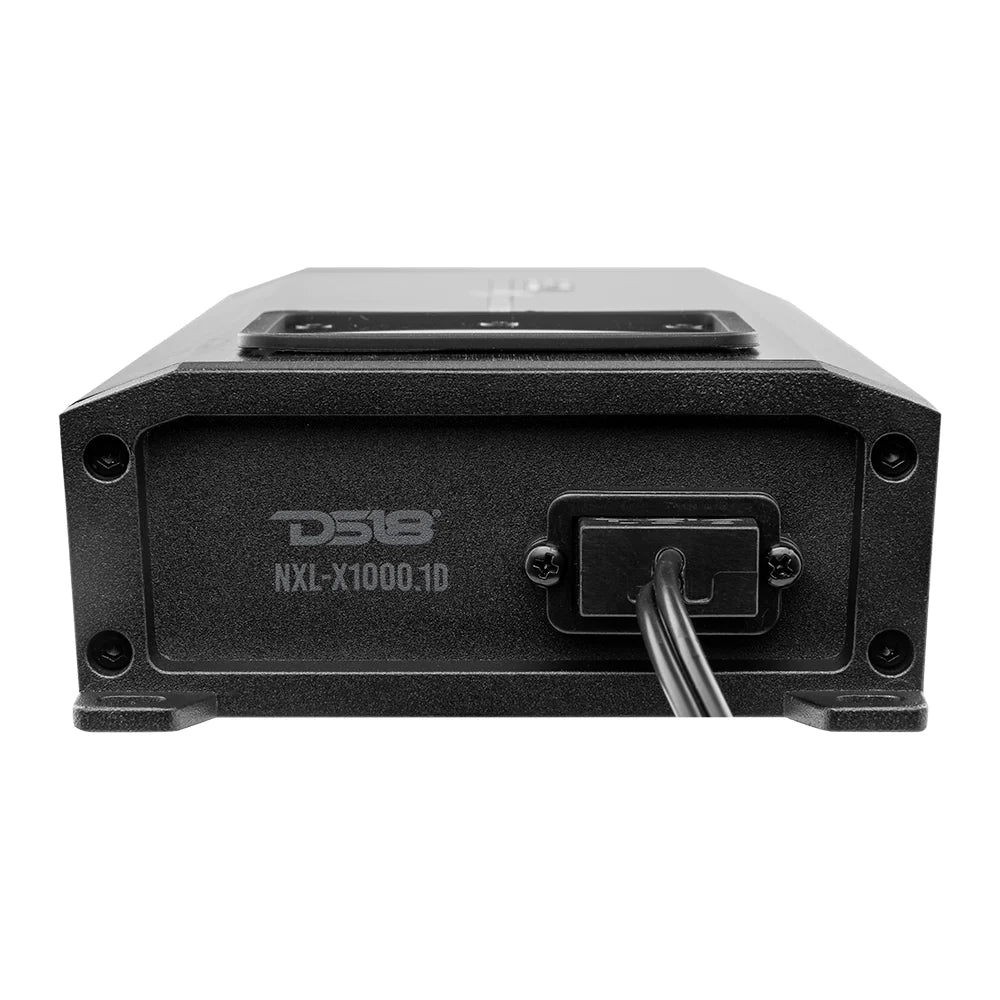

DS18’s HYDRO NXL-X1000.1D is a powerhouse designed for those who crave a compact audio solution that doesn't compromise on power or sound quality.

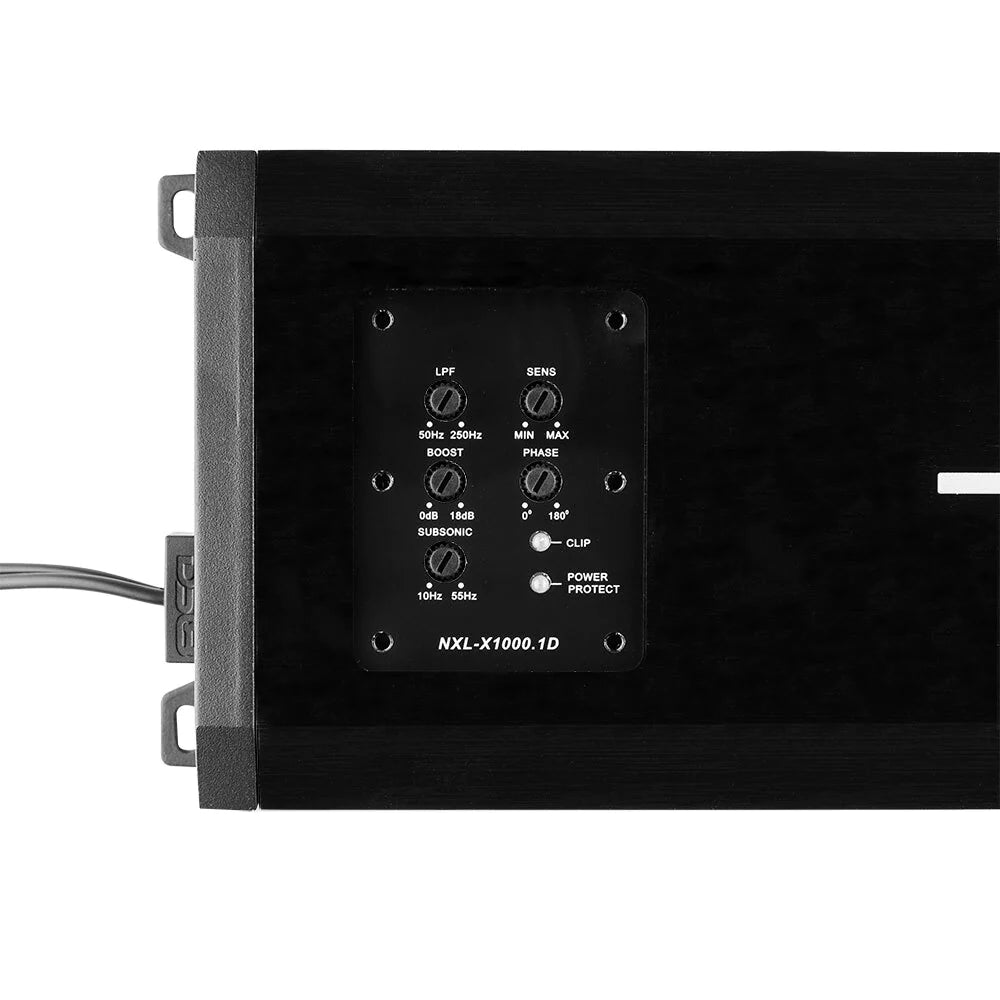

With its high pass and low pass filters, the NXL-X1000.1D allows you to fine-tune your speaker setup for crystal-clear audio at any volume level. Featuring the latest digital amplifier design with SMC technology, this amplifier delivers powerful and efficient performance while minimizing distortion. The stable and reliable 4-layer PCB layout ensures optimal signal flow for exceptional audio precision.
One of the standout features of this amplifier is its IP67 waterproof rating, ensuring reliable performance even in wet and challenging conditions. UV, salt, and fog protection further enhance its durability, making it perfect for marine applications and off-road excursions.
With a peak power output of 2000W and RMS power ranging from 350W to an impressive 1000W at 1 ohm, you can enjoy immersive sound and enhanced bass that will elevate your audio experience to new heights.

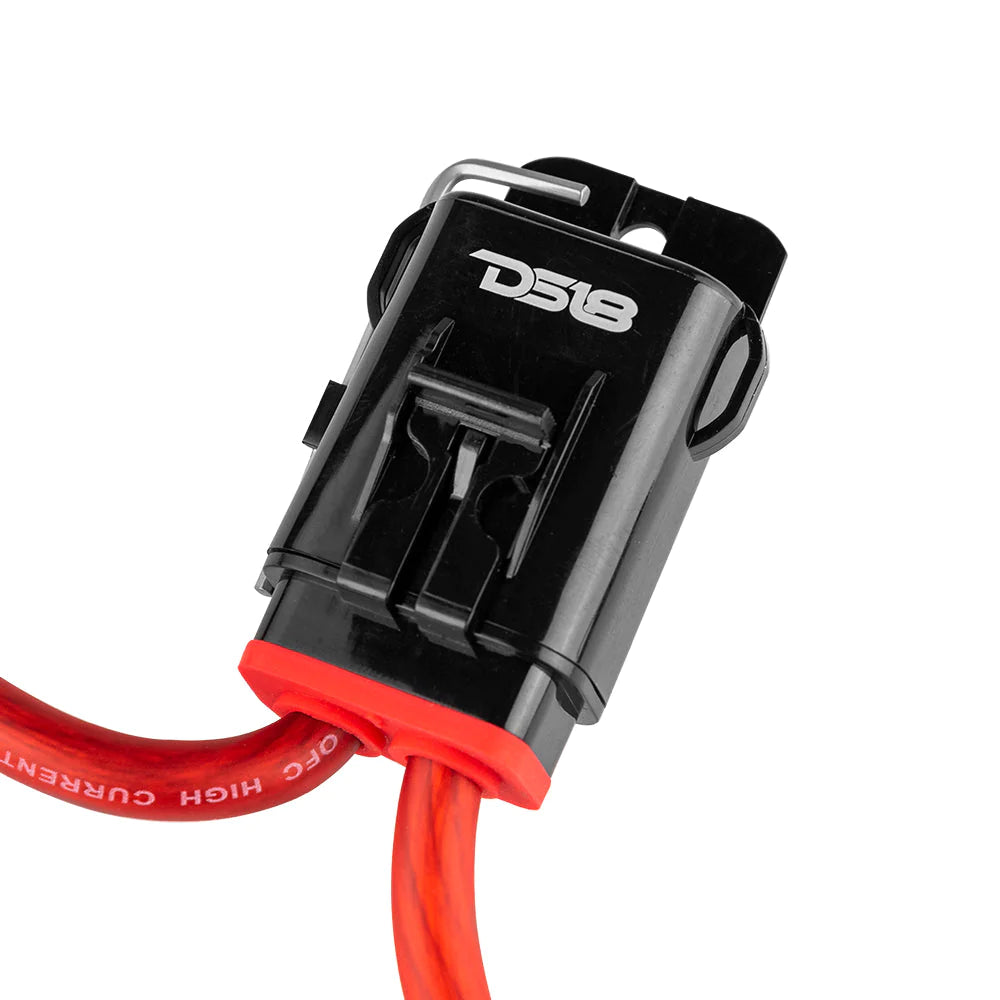

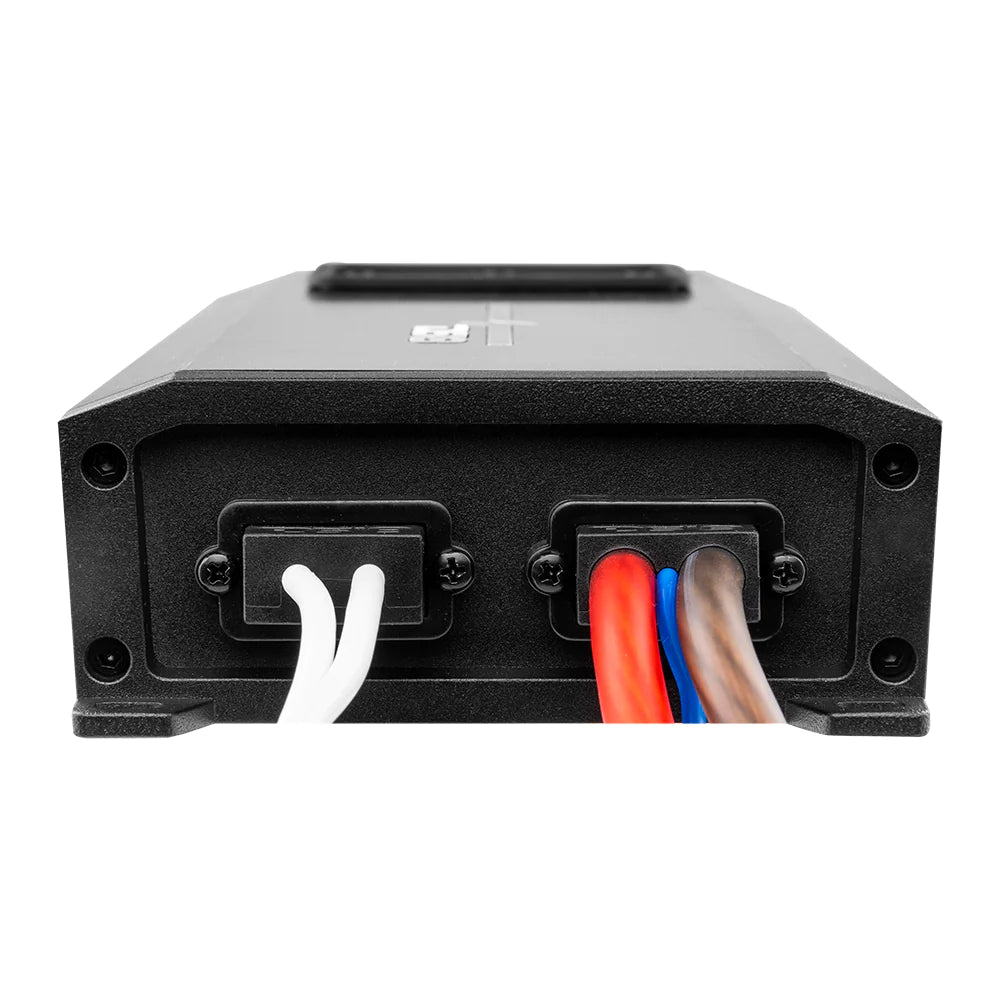

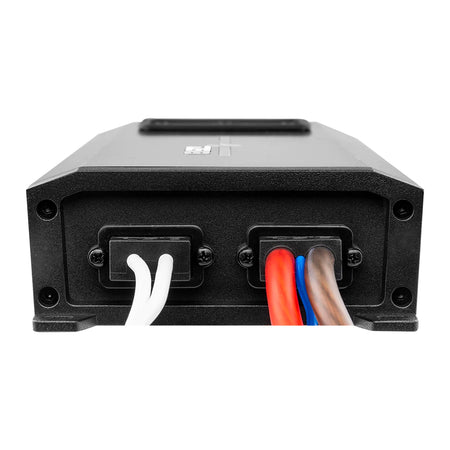

The direct power harness design with marine-grade OFC tinned wires guarantees a secure and efficient connection, but also offers convenience. Its ultra-compact size makes installation a breeze, while the included marine-grade fuse and fuse holder provide ultimate protection against electrical surges.
Experience the DS18 difference with DS18’s HYDRO NXL-X1000.1D and take your sound system to the next level.
Features:
- Marine Mono Block
- 1 Channel
- 1000 Watts@ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Fits:
- 2015+ Polaris Slingshot
Specs:
SKU
NXL-X1000.1d
Total Watts (Peak)
2000W
RMS Power @ 4 ohm
350W
RMS Power @ 2 ohm
600W
RMS Power @ 1 ohm
1000W
Audio:
Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 82dB
Efficiency @ 4 ohm
83%
Input Impedance
20K OHM
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V
X-Over Filter Range
50Hz-250Hz
Bass Boost Range
0-18dB
Bass Boost Frequency
42Hz
Infrasonic Filter
10Hz-55Hz
Phase Selector
0-180°
Selectable X-Over
LPF Fixed°
Features 1:
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC
Features 2:
Fuse Size
2 x 50A (100A)
Thermal Protection
Yes (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum
Extra Features:
RCA Audio Output
No
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes
Marine Grade Fuse Holder
Yes
Size:
Overall Length
11.8" / 302mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11" / 281.6mm
Gross Single Unit Weight
2.21kg
Product Weight
6 lbs
Product Dimensions
15.5 x 9 x 3.75
M/C Weight
31 lbs
M/C Dimensions
19.25 x 16.5 x 10
M/C QTY
5
Sold In
Piece
